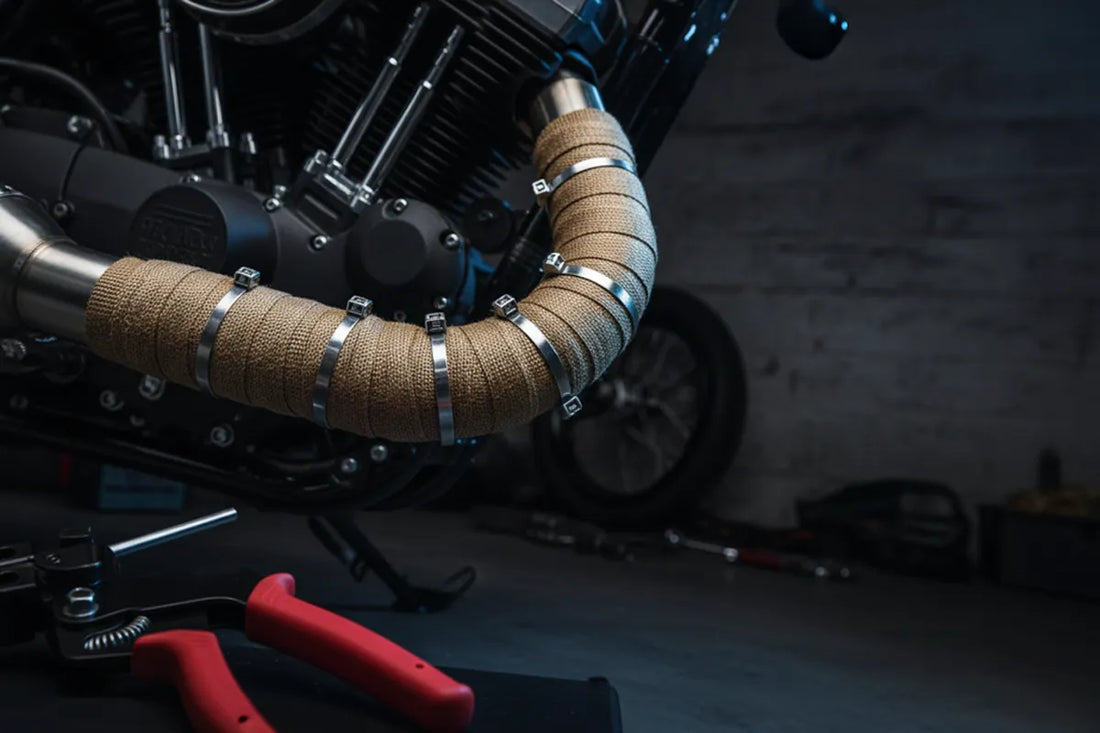

Securing Motorcycle Exhaust Wrap: Tools and Techniques

securing motorcycle exhaust wrap requires the ultimate mechanical durability to withstand extreme vibration and exhaust manifold heat without slipping or tearing. By choosing heavy-duty fastening accessories from the Galixo Store, professional mechanics and DIY garage builders can ensure a tight, reliable installation that resists melting or weathering.

1. The Mechanical Science of Securing Motorcycle Exhaust Wrap

Securing high-temperature exhaust insulation requires maintaining uniform tension across fluctuating thermal cycles. When managing motorcycle header wraps, metal zip ties utilize a precise mechanical locking mechanism to counter thermal expansion and exhaust vibration. Selecting the correct tightening tools ensures a slip-free grip that stabilizes the fiberglass composite, keeping critical engine heat shielded safely.

Material Origin and Nature of 304 Stainless Steel

Heavy-duty metal ties must withstand extreme physical degradation under the motorcycle chassis. The metallurgy of 304 stainless steel, possessing a high Chromium-Nickel ratio, ensures complete immunity to aggressive salt spray oxidation and garage chemicals. This specific alloy complies with global ASTM A240 standards, guaranteeing the metal maintains its structural integrity without scaling or becoming brittle when exposed to continuous operating temperatures of up to 538 degrees Celsius.

Anatomy Breakdown of Metal Cable Ties

Understanding the mechanical anatomy of your hardware is vital for successful long-term application. High-durability metal ties are composed of four distinct engineering elements:

• Steel ball lock: A hardened spherical ball housed in a tapered head that jams tighter as pulling force increases.
• Entry head slot: The low-profile entry chamber designed to receive the tail without friction.
• High-tensile metal band: The smooth, micro-polished 304 steel strap engineered to distribute clamp load evenly.
• Lead-in tail: The tapered tip designed to slip smoothly into the locking head during initial hand-tightening.

Operating Principle of Self-Locking Fasteners

Self-locking ties rely on a wedge lock mechanism where the internal ball bearing moves backward into a narrow slot when the tail experiences reverse tension. This physical friction wedge prevents any backward movement, locking the band instantly at maximum tension. When applying a motorcycle exhaust wrap install, this self-locking action resists the continuous expansion and contraction of the header pipes, preventing the wrap from sagging or sliding down the pipe over thousands of heat cycles.

2. Comparing Worm-Drive Clamps Versus Stainless Steel Zip Ties

Custom builders frequently debate the effectiveness of worm-drive clamps versus low-profile metal ties when completing a high-performance exhaust modification. Selecting the wrong securing hardware can lead to premature wrap failure, unsightly bulkiness, or ruined boots and gear from sharp metal snags. Examining the exact physical performance of these fastening methods helps customizers select the correct tool for their specific motorcycle exhaust layout.

Galixo 304 SS vs Nylon Plastic Ties

Standard plastic zip ties are completely useless on engine components. High-temperature headers quickly exceed 400 degrees Celsius within minutes of starting the engine, causing nylon to melt instantly and leading to unraveling wraps. Furthermore, environmental exposure to engine oil, UV rays, and road salt embrittles nylon, causing rapid structural failure. Upgrading to cafe racer custom exhaust ties made of solid 304 steel eliminates the risk of melting, ensuring your thermal protection remains locked in place indefinitely.

Automatic Zip Tie Gun vs Manual Metal Snips

Using pliers to manually pull metal ties often leaves loose slack that lets the exhaust wrap slip over time. Pliers also slip off the narrow band, scratching high-end chrome headers or tearing the delicate weave of fiberglass wraps. Worst of all, cutting ties with side cutters leaves a sharp, diagonal metal tail that acts like a razor blade against skin and riding gear. Utilizing an automatic steel cable tie gun allows for one-hand operation in tight chassis spaces, providing repeatable, high-tensile clamping pressure and a perfectly flush cut with no dangerous edges.

3. Technical Specifications and Sizing for Exhaust Wrap Hardware

Choosing the correct dimensions of 304 steel ties is critical to ensuring your wrapping remains secure under the high vibration of custom V-twins and high-RPM sportbikes. Under-sized ties will break when the exhaust system undergoes thermal expansion, while over-sized ties can be difficult to pull tight in the confined clearance around engine manifolds. Understanding the precise load capacities and size ratings of your hardware prevents installation failures.

Core Specs Analysis of Breaking Strength

Consulting the exhaust header wrap tool reviews reveals that tensile strength determines how well a joint handles engine vibration. Standard 4.6mm wide ties provide up to 200 lbs of holding force, which is ideal for standard passenger motorcycle pipes. For race track applications or heavy agricultural machinery that experience heavy vibration, upgrading to the wider 7.9mm ties provides a high breaking strength of 350 lbs, ensuring the metal band never snaps under load.

Budget-Based Consulting for Garages and DIY Builders

A hobbyist rebuilding a single vintage motorcycle in a home garage needs a cost-efficient kit containing a tensioning tool and 100 assorted 304 steel ties. This supplies enough variety to wrap standard dual headers and collectors while keeping costs low. For commercial speed shops and customization garages, a high-volume combo of 500 to 1000 pieces of assorted sizes ensures that you always have the correct fastener length on hand, minimizing downtime during client builds.

Cost-Per-Use Formula and Long-Term Value

While quality metal zip ties cost more upfront than cheap nylon alternatives, calculating their long-term cost shows excellent financial value. Nylon ties melt within minutes, requiring constant replacement and risk-filled repairs when the wrapping falls loose onto a hot exhaust. Solid 304 stainless steel resists corrosion and thermal breakdown indefinitely. This durability reduces maintenance costs to zero, proving that a single correct installation saves substantial money over the lifespan of the motorcycle.

4. Comprehensive SOP for Securing Motorcycle Exhaust Wrap Flawlessly

Securing heat insulation requires a systematic, professional approach to prevent loose wrapping and aesthetic flaws. This Standard Operating Procedure is based on extensive shop experience from the Galixo engineering team. Following these detailed structural steps guarantees a secure wrap that optimizes exhaust heat retention while giving your custom build a highly clean look.

Before beginning this installation, gather your required tools and personal protective equipment. Wear high-grade safety glasses to protect your eyes from loose fiberglass particles, and wear heavy cut-resistant gloves to protect your hands from sharp metal edges. You will need a high-temperature wrap roll, several 304 stainless steel zip ties, a wire cleaning brush, a degreasing solvent, and a professional stainless zip tie gun.

Step 1: Pre-Soaking and Header Surface Preparation

Proper preparation is critical to ensure the wrap grips the header surface tightly without slipping during installation. Cleaning the pipe ensures no rust pockets develop underneath the fiberglass wrap.

• Clean the outer surface of the exhaust pipe using a stiff wire brush to remove carbon deposits, rust flakes, and road grit.
• Degrease the entire metal surface with a fast-evaporating solvent to remove any residual oil or manufacturing grease.
• Submerge the fiberglass wrap roll in clean water for 15 minutes, allowing the fibers to saturate completely.
• Squeeze excess water from the roll, ensuring it remains damp but not dripping wet.

The water acts as a temporary lubricant, allowing you to stretch the fiberglass material tighter around the pipe. As the pipe heats up during engine operation, the moisture evaporates, causing the wrap to shrink and lock tightly against the metal.

Before wrapping, inspect the header pipe surface closely for any hairline cracks or pinholes. Wrapping over a damaged exhaust will trap corrosive gases and rapidly accelerate metal failure underneath the insulation.

Step 2: Initiating the Base Wrap and Anchor Tie

The starting wrap must be anchored perfectly to provide a solid base for the rest of the installation. A loose start will cause the entire wrap to spin on the pipe.

• Align the damp wrap at the manifold end of the header pipe, leaving a 5mm gap from the flange.
• Wrap the material around the pipe, overlapping the first layer by 100% to lock the starting edge.
• Slip a 304 stainless steel zip tie around this double-layered base, inserting the tail through the locking head.
• Pull the metal tie snug by hand, ensuring the self-locking ball bearing clicks into place.

Make sure the metal tie is positioned exactly 15mm from the raw edge of the wrap. This spacing prevents the fiberglass from fraying and ensures the anchor joint cannot slip over the pipe flange.

Use your eyes to check that the tie is aligned straight. A crooked anchor tie will apply uneven clamping pressure, creating a weak point that can slip under engine vibration.

Step 3: Maintaining Constant Tensile Overlap Wrapping

Keeping consistent tension as you wrap the pipe prevents hot spots and guarantees a professional, uniform appearance. This step requires constant physical pull on the material.

• Pull the wet wrap roll firmly away from the pipe to keep constant tension on the material.
• Rotate the wrap around the exhaust manifold, maintaining a consistent 50% overlap on every single pass.
• Smooth out any wrinkles or air pockets with your gloved hands as you progress down the pipe.
• Secure the wrap temporarily with a spring clamp if you need to pause or reposition your hands.

Maintaining a 50% overlap creates a double-layered barrier that insulates the exhaust pipe evenly. This uniform layer is essential for keeping exhaust gas temperatures high, which improves cylinder scavenging and boosts overall engine performance.

Be careful not to wrap too tightly near fuel lines, brake hoses, or electrical harnesses. Always maintain a safe clearance of at least 25mm to prevent heat damage to these critical components.

Step 4: Securing the Final Termination Joint with 304 Steel

The end of the wrap must be secured with the same high tension as the start to prevent unraveling. This step seals the fiberglass system cleanly.

• Cut the wrap at a 45-degree angle at the end of your run to allow for a clean, low-profile fold.
• Fold the raw cut edge inward under the final wrap layer to hide the fiber ends and prevent fraying.
• Wrap a heavy-duty 304 stainless steel zip tie over this folded layer, feeding the tail through the locking head.
• Tension the metal tie by hand to take up all loose slack before applying the tensioning tool.

Placing the tie directly over the folded end locks the raw edge inside the wrap. This trick protects the fiberglass from catching on road debris or wearing down under high-speed wind resistance.

Verify that the final wrap fold is positioned on the inside of the exhaust pipe, facing toward the motorcycle frame. Hiding this joint keeps the visible side of your exhaust clean and uncluttered.

Step 5: Professional Tensioning and Flush Cutting with Galixo Gun

Using a professional tensioning tool is the only way to lock the metal ties at their maximum holding capacity while leaving a safe, clean finish.

• Insert the tail of the metal tie into the side jaw of the stainless zip tie gun.
• Squeeze the tool trigger repeatedly to draw the metal band tight against the exhaust wrap.
• Tension the tie until the tool mechanism locks, indicating the tie has reached its optimal holding pressure.
• Pull the integrated cut-off lever to sever the excess tail flush with the locking head.

The automatic cutter slices the steel band flush at the head, leaving no sharp metal protruding. This clean finish is essential to prevent painful cuts on your hands or damage to riding gear during future motorcycle maintenance.

Always hold the tool perpendicular to the locking head during the tightening process. Pulling at an angle can twist the metal band, which can compromise the internal lock and cause the tie to fail prematurely.

5. Fatal Mistakes that Loose Exhaust Wrap and Quick Solutions

Even experienced builders can run into problems when fix loose exhaust wrap issues. Incorrect wrapping techniques and cheap hardware can quickly lead to loose, slipping wraps or broken ties. Understanding how to diagnose and correct these common installation errors is key to ensuring your exhaust insulation lasts for years.

Top 5 Fatal Beginner Mistakes

Avoiding these common installation mistakes will save you time and prevent premature material failure on your custom exhaust:

• Dry wrapping fiberglass: Attempting to wrap the header pipes with dry material prevents the fibers from stretching, resulting in a loose fit once the pipe heats up. Always soak the wrap roll in water before installation.
• Using standard wire cutters: Cutting stainless steel ties with cheap side cutters leaves sharp, jagged edges. Use a professional tensioning tool with an integrated flush cutter to ensure a safe, smooth finish.
• Inadequate wrap overlap: Wrapping with less than a 50% overlap creates thin spots that let heat escape, which can lead to hot spots and cause the wrap to unravel. Maintain consistent spacing along the entire pipe.
• Over-tightening thin wall headers: Applying excessive force on vintage, thin-walled exhaust pipes can crimp or crush the metal. Use calibrated tensioning tools to tighten the ties safely without damaging the pipes.
• Using cheap imitation steel ties: Cheap metal ties made of low-grade alloys quickly rust and fail under environmental exposure. Always use genuine 304 stainless steel ties to ensure long-term durability.

Hidden Traps Market Warning

The automotive aftermarket is flooded with cheap, low-grade metal ties sold as genuine 304 stainless steel. These imitation fasteners are often made of zinc-plated mild steel or cheap alloys that contain high impurities. They quickly rust, lose their tension, and snap under the high temperatures of your exhaust system. Additionally, many cheap tie guns use soft steel blades that quickly chip and dull, leaving dangerous sharp edges on the cut ties. Professional builders trust Galixo Store hardware, which is engineered from high-grade 304 stainless steel and features hardened tool steel blades for clean, reliable performance.

Tool Unjamming SOP

If the metal band is fed into the tensioning gun at a crooked angle, the tool can occasionally jam. If this happens, do not force the trigger, as this can damage the internal mechanism. Follow this simple checklist to clear the jam quickly and safely:

• Release pressure on the main trigger completely.
• Locate the manual release lever on the top of the tool body.
• Press the release lever downward to open the internal gripper jaws.
• Pull the jammed metal band backward out of the entry slot.
• Inspect the cutting blade for any trapped metal fragments.
• Clear any debris using a small wire brush.
• Re-align the metal tie tail and feed it straight into the tensioning jaw.

6. Frequently Asked Questions about securing motorcycle exhaust wrap (FAQs)
